LITHIUM ION BATTERY APPLICATION

The best lithium ion deep cycle battery solution is the one that works for you.

send your inquiry

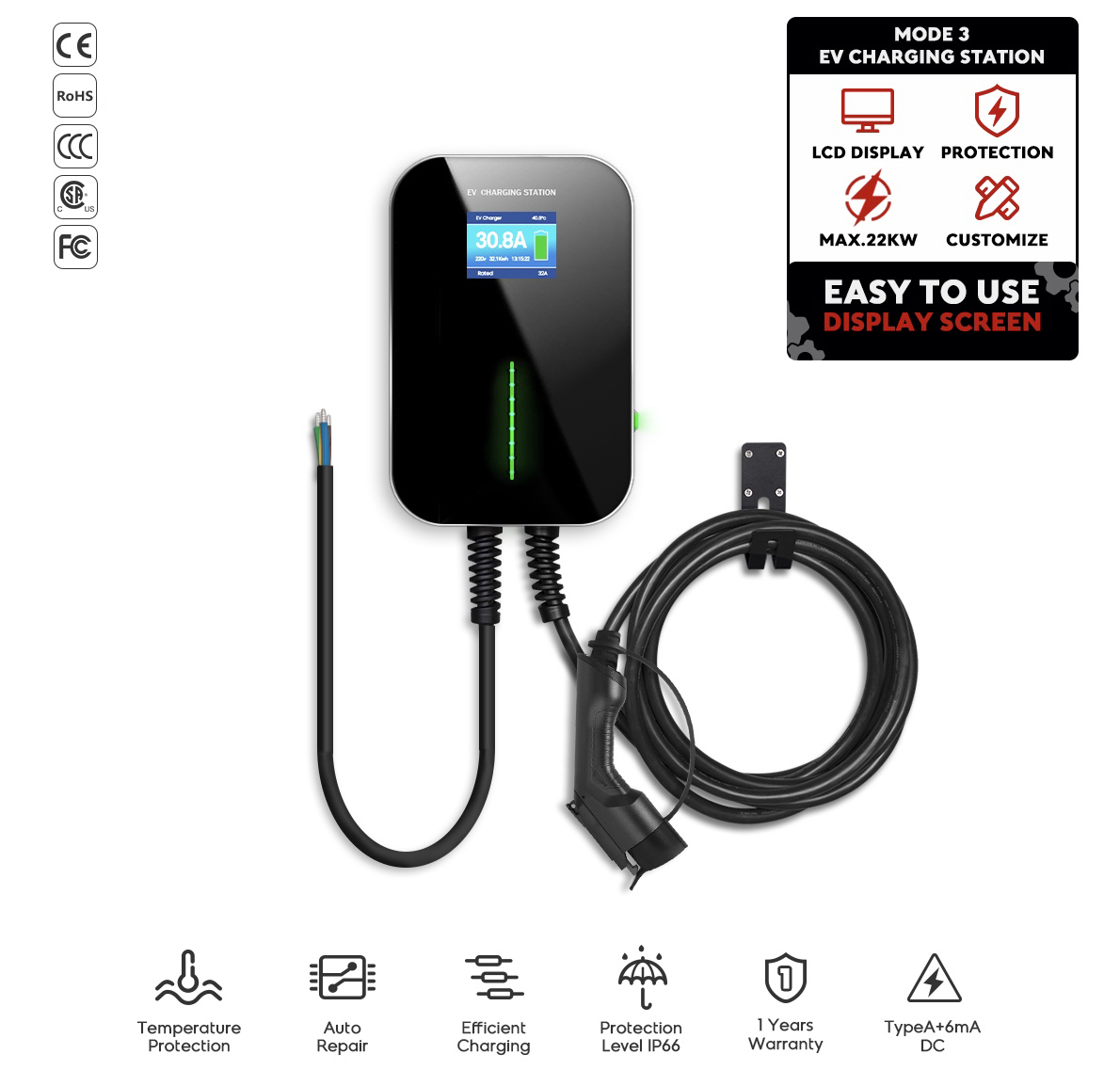

Basic charging wallbox

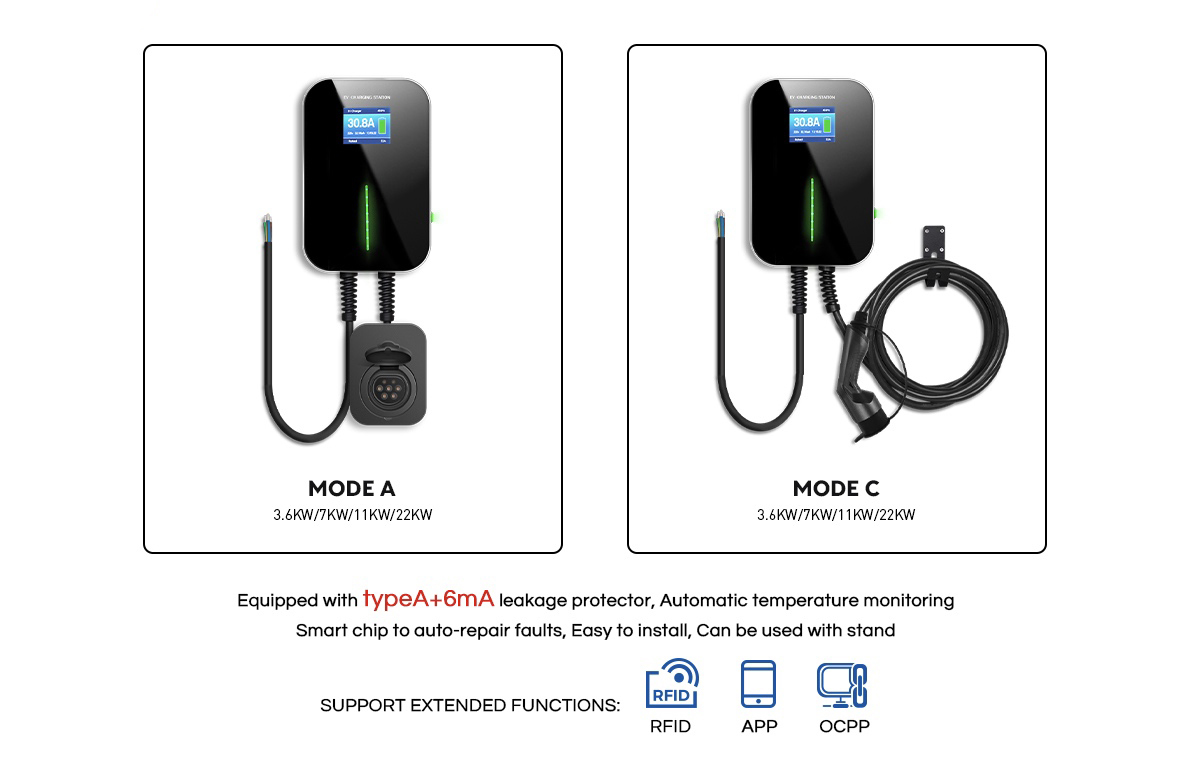

You can start or stop charging simply by pressing the button. There is an LCD display on the front where you can see the charging data in real time. It's small, easy to transport and equipped with complete safety protection system. It has two connection modes: Mode A and Mode C. Its working voltage ranges from 110V to 440V (±10%). It can be installed on the wall or used with a pillar.The installation is easy and convenient. It's equipped with complete protection mecha

Technical Data

Input Voltage/Output voltage:100V /250V /440V (Three Phase)
Input frequency:47~63Hz
Max output power:7.6kW/22kW(three phase)
Max output current:32A
Charging interface typeI:EC 62196-2, SAE J1772
Protection degree:IP67
Environment temperature:-40℃ ~ +80℃
Relative humidity:0-95% non-condensing
Standby power consumption:<8W
Certificate:CE, FCC, ROHS, CCC, CSA, IK10, IP67&

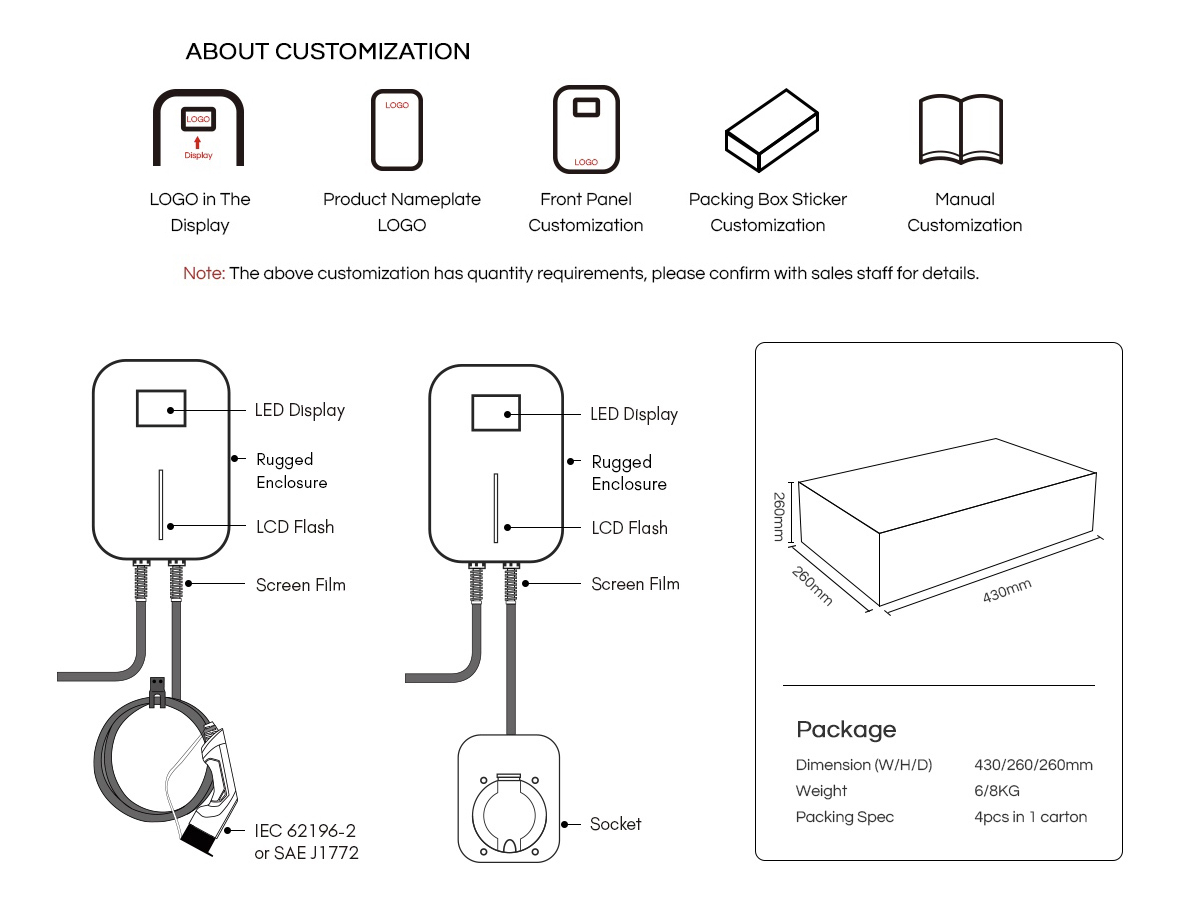

CHARGING BOX
LCD screen Easy installation
High compatibility
Waterproof grade:IP67
Structural strength:IK 10
Small size,Easy to transport
Over- voltage protection/lightning protection
Certified by authorities (CSA, CE, FCC, NTC, CCC)
Real-time monitor on charging temperature
Automatic error correction & reboot system

DETAILS

Technical Data

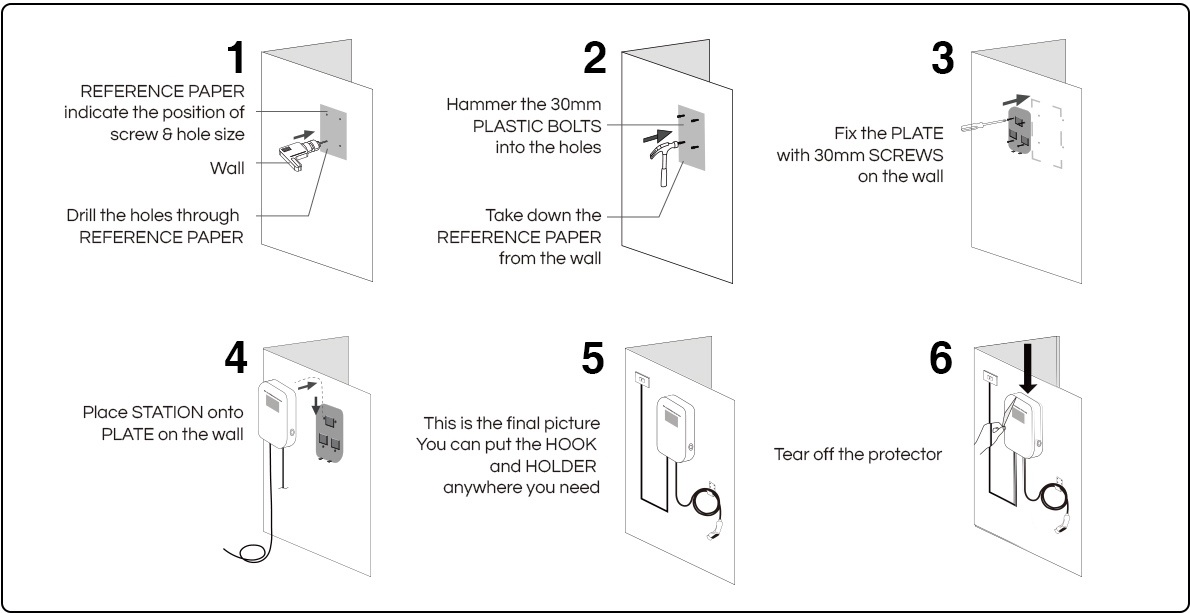

Installation

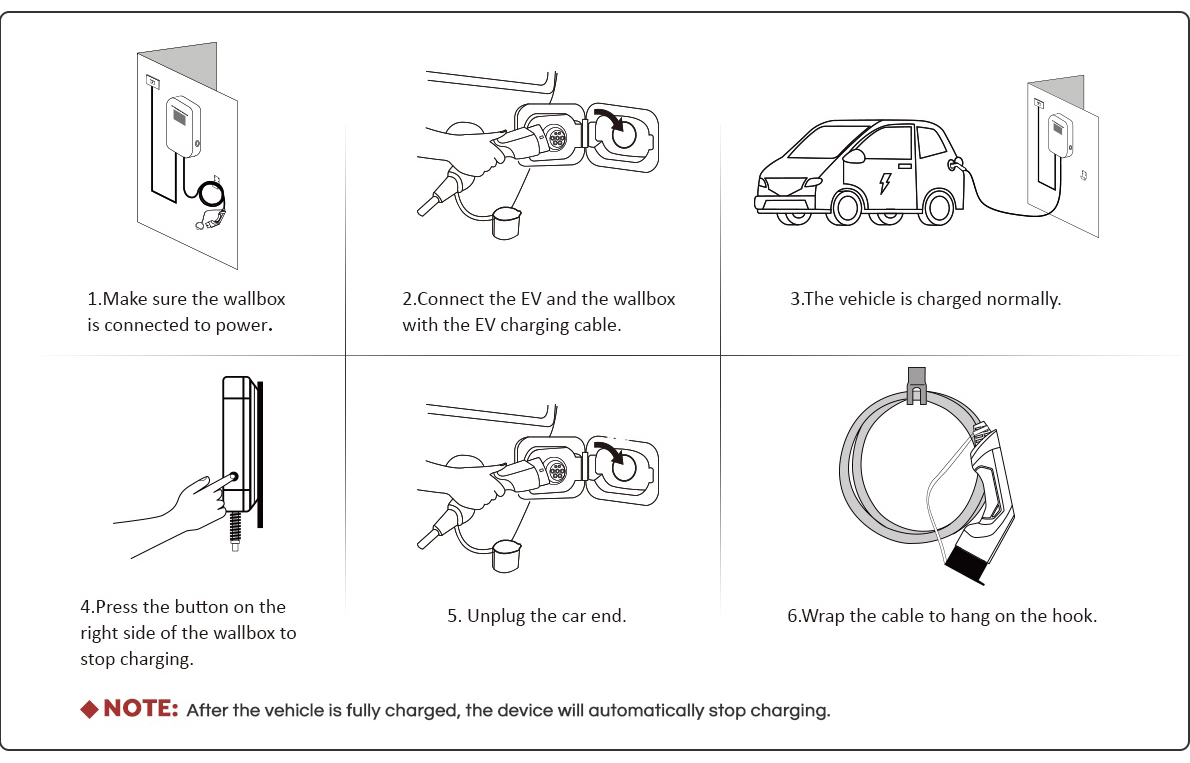

Usage

Input Voltage/Output voltage100V /250V /440V (Three Phase)

Input frequency47~63Hz

Max. output power7.6kW/22kW(three phase)

Max. output current32A

Charging interface typeIEC 62196-2, SAE J1772

Working Environment

Protection degreeIP67

Environment temperature-40℃ ~ +80℃

Relative humidity0-95% non-condensing

Maximum altitude<2000m

CoolingNatural air cooling

Standby power consumption<8W

Function and Accessory

Ethernet/WIFI/4G/BluetoothNo

LCD3.5-inch color display

RCDType A / Type A+ 6mA

LED Indicator lightYes

Intelligent power adjustmentYes

RFIDOpt

APP    Opt

Certificate

CE, FCC, ROHS, CCC, CSA, IK10, IP67
