Type 1 connector

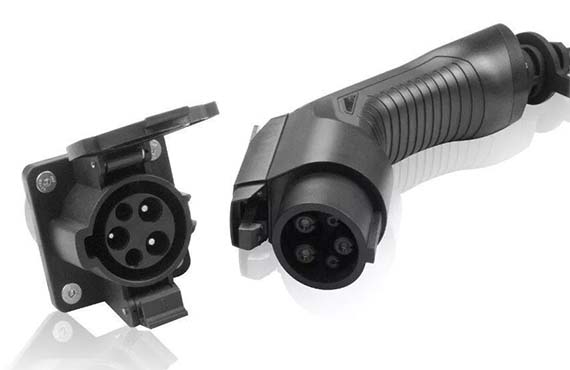

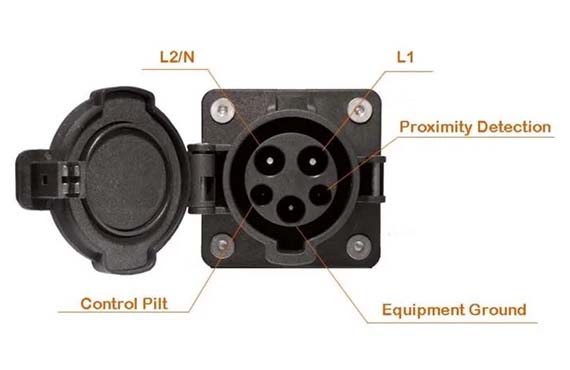

Type 1 connector is also called SAE J1772 connector (SAE J1772 , also known as a J1772 plug, is a North American standard for electrical connectors for electric vehicles maintained by the SAE International ) which features a five-pin connection at ends. Connector features silver platings that provide excellent conductivity and can prevent overheating. The Type 1 connectors include plug, inlet, dummy socket, etc. Adaptation current is mainly divided into 16A, 32A, 40A. Adaptation volt

Parameters

Rated current: 16A/32A
Working voltage: 120V~250V AC
Insulation resistance: > 1000M Ω
Terminal temperature rise: <50K
Vibration resistance: Meet JDQ 53.3 requirements
Withstand voltage: 2000V
Contact impedance: 0.5m Ω Max
Working temperature: -30°C ~+ 50°C

Materials

Shell Material: Thermo Plastic ( Insulator inflammability UL94 VO)
Contact Pin: Copper alloy, silver or nickel plating
Sealing gasket: rubber or silicon rubber

DETAILS

Parameters
Rated current: 16A/32A
Working voltage: 120V~250V AC
Insulation resistance: > 1000M Ω
Terminal temperature rise: <50K
Vibration resistance: Meet JDQ 53.3 requirements
Withstand voltage: 2000V
Contact impedance: 0.5m Ω Max
Working temperature: -30°C ~+ 50°C
