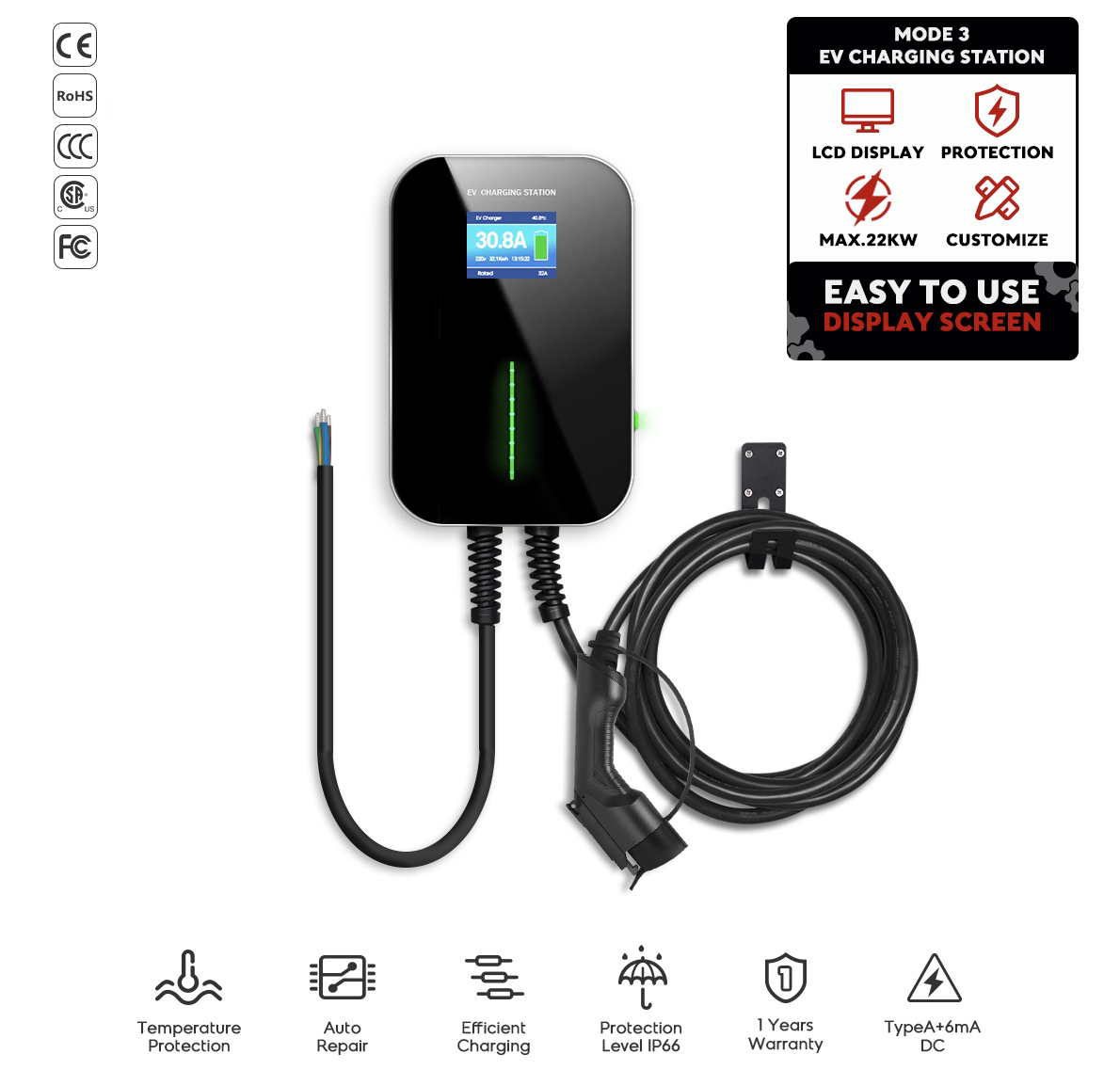

Basic charging wallbox

You can start or stop charging simply by pressing the button. There is an LCD display on the front where you can see the charging data in real time. It's small, easy to transport and equipped with complete safety protection system.

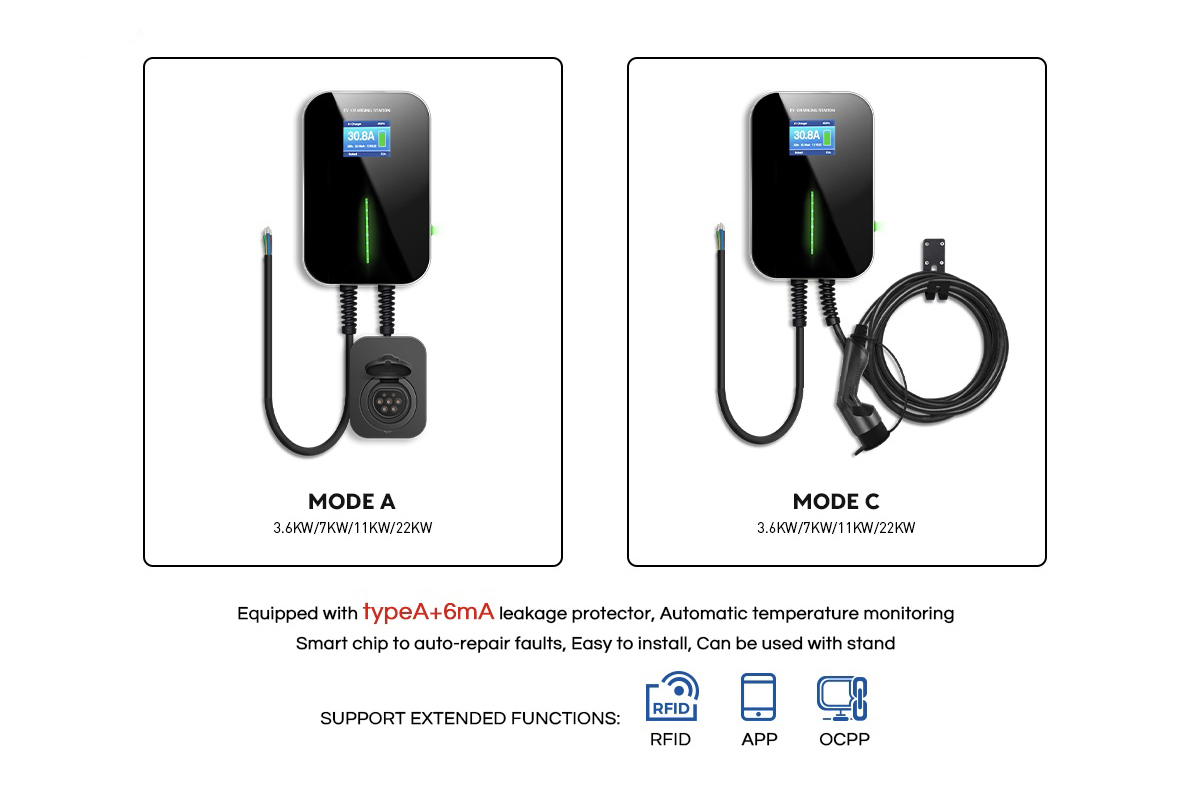

It has two connection modes: Mode A and Mode C.
Its working voltage ranges from 110V to 440V (±10%).
It can be installed on the wall or used with a pillar.The installation is easy and convenient.

IP66 EV Charger（16A 32A 3.6kW 7.2kW 11kW 22kW）with 20ft SAE J1772 & IEC 62196-2 Plug
This is a basic wall-mount charger and suitable for home use. It is easy to install, stable in performance, and has a complete protection mechanism. The LCD display can show the detailed charging status. The charger can be used with stand.
Current:16A , 32A
Power:3.6kW, 7.2kW,11kW, 22kW
Cable Length: 6.1m

Input Voltage/Output voltage100V /250V /440V (Three Phase)
Input frequency47~63Hz
Max. output power7.6kW/22kW(three phase)
Max. output current32A
Charging interface typeIEC 62196-2, SAE J1772
Protection degreeIP67
Environment temperature-40℃ ~ +80℃
Relative humidity0-95% non-condensing
LCD：3.5-inch color display
RCD：Type A / Type A+ 6mA
